Box-making machines and printing system - Hard Die Cutter

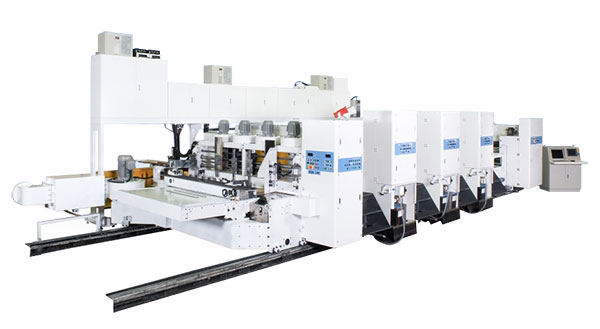

Hard die cutter can punch out even complex designs sharply by advanced computer control, and it is combined with feeder unit, printer unit and control system.
Shinko's unique high-precision hard die cutter system integrates the printing and die-cutting processes into a single process, greatly reduce box-making losses and improving quality.
Features and Functions
Feeding Unit
Test sheet running device
After automatically accelerating the machine, only one sheet is fed.
Sheet jam detector
Sheet jams cause machine damage. A sensor detects jams and automatically stops the machine.
Detection device for misaligned sheet feeding
Detect misaligned sheet feeding and stop feeding.
First sheet setting device (option)
After the lot change, a small stack of sheets is automatically fed to the feeder.
Printer (Printing Unit)
Fixed type printer
Unit fixed type, the plate cylinder raises and downs.
Each unit is connected by the carrying belt, the plate cylinder and ink roll can be raised about 100mm above the sheet pass line. The plate cylinder of the not-in-use printers can be raised for changing printing plate, or prepare for the next order, even while the machine is running. It shortens the setup time significantly, and reduces the work.
Chambered doctor blade system (Standard specification)
The doctor chamber type is the standard specification. Shinko's unique shape of the chambered doctor blade system ensures sharp and high-quality print images. A 2-roll type for varnishing and solid printing is also available.
Multi-color printing
Depending on the combination of printing units, it is also possible to handle multiple colors from 1 color to 4 colors or more.
Anilox roll (selectable)
Carrying Unit
Carrying belt system
High-strength timing belts hold the left and right edges of the sheet between the top and bottom to convey the sheet, so even if the sheet is warped, it can be stably conveyed.
Carrying belt center suction
Since the sheet is sucked at the center of the carrying system, misalignment can be prevented.
Hard Die Cutter
Hard Die Cutter
It cuts sheets of any thickness sharply with the best punching pressure, and clearly perform the complex cutting and folding.
For die cutting, we use hard metal type cylinder with high precision cutting further than urethane cylinder.
It can adjust the die cutting pressure in micron unit.
CNC
Main control system
Equipped with dedicated flexo gluer software that has been developed and improved independently, enabling accurate work in a short setting time.
Teaching function
Machine learns the each settings for sheets and products, so resetting for same order is unnecessary.
Large display (option)
The large display shows machine status. (machine speed, set up time etc)
Network communication (option)
Send machine setting data to peripherals, and pass data with various management systems.
